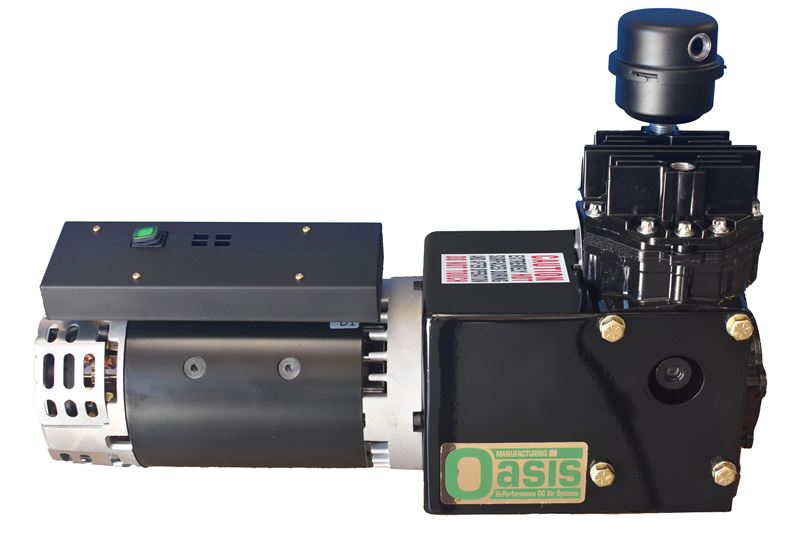

XDM3000-24 Compressor Details

Heavy-Duty Engineering for 24V Systems

The XDM3000-24 extended-duty DC air compressor delivers reliable performance for medium-duty applications with significantly reduced maintenance requirements. Designed for 24V electrical systems, this compressor offers the same proven engineering as the standard XDM3000 with enhanced power capabilities.

Key Performance Features:

  • Oil control piston rings minimise oil discharge into air supply
  • Finned head design optimises heat dissipation
  • Integrated oil reservoir with PCV system extends service intervals
  • Commercial-grade 24V DC motor with cooling fan reduces heat build-up
  • Series wound motor delivers superior torque and efficiency

Performance Specifications:

  • Operating Voltage: 24V DC electrical systems
  • Continuous Operation: Up to 30 minutes at 690 kPa (100 PSI) at 21°C ambient temperature
  • Duty Cycle: 100% continuous, then 50% for extended operation
  • Maximum Pressure: 1380 kPa (200 PSI)
  • Flow Rate: ≥226 L/min (8 CFM) at 690 kPa (100 PSI)
  • Current Draw: ≤110 amps at maximum pressure
  • Dimensions: 533mm x 178mm x 279mm (21″ x 7″ x 11″)
  • Weight: 28 kg (62 lbs)

Operating Range:

  • Temperature Range: -20°C to 65°C (-4°F to 150°F)
  • Maximum Restart Pressure: 1034 kPa (150 PSI)

Ideal Applications

Perfect for 24V vehicle systems requiring extended but not continuous heavy-duty operation, including:

  • Heavy-duty trucks and commercial vehicles
  • Mining and construction equipment
  • Agricultural machinery with 24V electrical systems
  • Marine applications
  • Industrial mobile workshops

For more demanding tasks like mobile tyre changing or high-intensity industrial use, we recommend upgrading to the XDM4000-24 series for enhanced cooling and sustained high-output performance.

ENHANCED CAPABILITIES

Built for Heavy-Duty Vehicle Systems

The XDM3000-24 is specifically engineered for vehicles and equipment with 24V electrical systems, providing the power and reliability needed for demanding mobile applications.

Why choose 24V DC compression:

  • Higher efficiency than 12V systems for demanding applications
  • Reduced current draw compared to equivalent 12V units
  • Enhanced performance in cold weather conditions
  • Purpose-built for heavy-duty commercial and industrial vehicles
