XDM4000 Compressor Details
Ultimate Continuous-Duty Performance

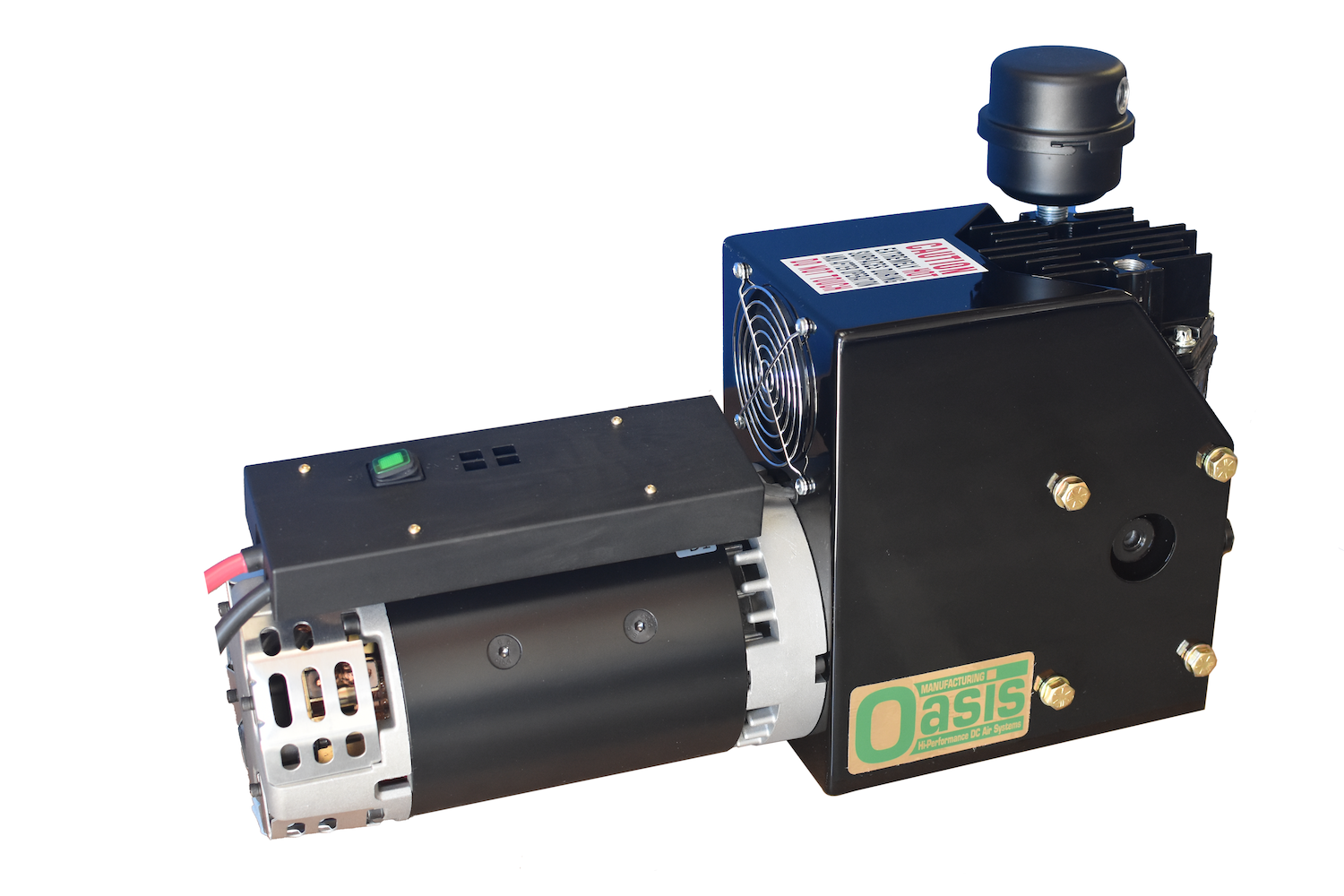

The XDM4000 continuous-duty DC air compressor is the ultimate tool for extensive compressed air performance. GSA approved and designed for the most demanding applications, this industry-leading compressor delivers unrivalled reliability for commercial service, military operations, and heavy-duty industrial use.
Advanced Dual-Fan Cooling System:
- Deep-finned head and compressor body with specialised cooling design
- 100 CFM external cooling fan built into protective housing shroud
- Internal motor cooling fan for the modified 5HP electric motor
- Superior temperature reduction enabling continuous operation
- Oil control piston rings minimise oil discharge into air supply
- Integrated oil reservoir with PCV system extends service intervals
Performance Specifications:
- Operating Voltage: 12V or 24V DC electrical systems
- Continuous Operation: 100% duty cycle at 1380 kPa (200 PSI)
- Flow Rate: 425 L/min (15 CFM) free flow
- Maximum Pressure: 1380 kPa (200 PSI)
- Motor: Modified 3.7kW (5HP) commercial-grade DC motor
- Tank Recharge: 38-litre (10-gallon) tank from 827-1034 kPa (120-150 PSI) in 22 seconds
- Cooling: Dual-fan system (2832 L/min (100 CFM) external + internal motor fan)
Unique Capabilities:
- Runs 13mm (½”) impact wrench without an air tank
- Superior performance compared to systems requiring multiple compressors
- Military-grade construction trusted by AAA and service fleets worldwide
- GSA approved for government and municipal applications
Professional Applications
Engineered for the most rugged commercial and industrial requirements, including:
- Commercial service and tow trucks
- Military and defence applications
- Heavy-duty off-road vehicles
- Air suspension systems
- Mobile workshops and field service
- Industrial maintenance fleets
Unlike the XDM3000 series, the XDM4000 features exclusive dual-fan cooling technology, enabling true continuous-duty operation at maximum pressure—making it the preferred choice for applications requiring sustained high-output performance.
CONTINUOUS-DUTY ADVANTAGE
Built for Non-Stop Performance
The XDM4000’s exclusive dual-fan cooling system sets it apart from all other DC compressors. While other models require duty cycle breaks, the XDM4000 delivers uninterrupted operation when you need it most.
Why choose continuous-duty:
- Zero downtime during critical operations
- Consistent airflow for demanding applications
- Temperature control prevents overheating and component wear
- Extended component life through advanced cooling technology
- Professional reliability trusted by military and emergency services
