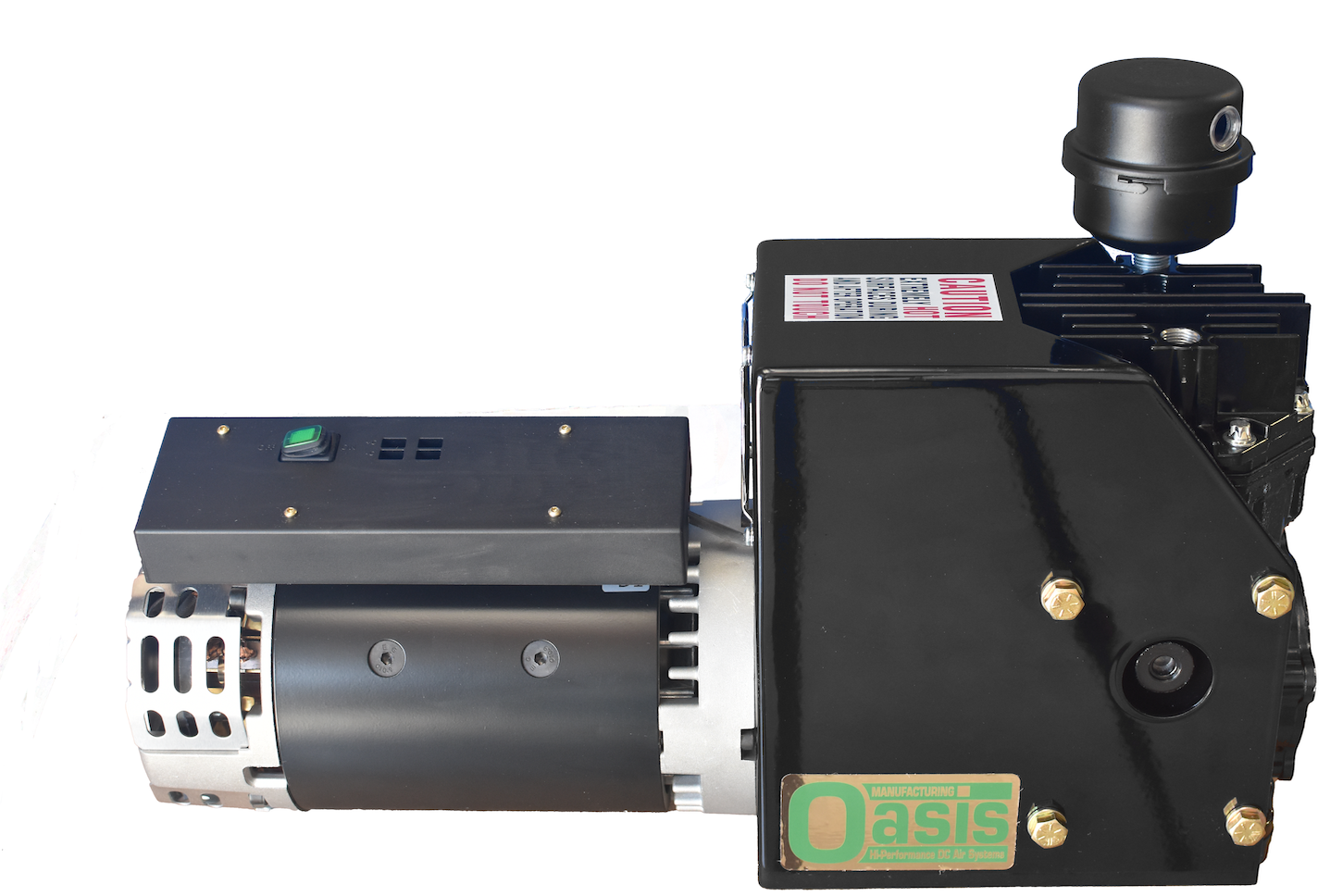

XDM4000-24 Compressor Details

Ultimate Continuous-Duty Performance for 24V Systems

The XDM4000-24 continuous-duty DC air compressor is the ultimate tool for extensive compressed air performance in 24V electrical systems. GSA approved and designed for the most demanding heavy-duty applications, this industry-leading compressor delivers unrivalled reliability for commercial service, military operations, and industrial use.

Advanced Dual-Fan Cooling System:

  • Deep-finned head and compressor body with specialised cooling design
  • 2832 L/min (100 CFM) external cooling fan built into protective housing shroud
  • Internal motor cooling fan for the modified 3.7kW (5HP) electric motor
  • Superior temperature reduction enabling continuous operation
  • Oil control piston rings minimise oil discharge into air supply
  • Integrated oil reservoir with PCV system extends service intervals

Performance Specifications:

  • Operating Voltage: 24V DC electrical systems
  • Continuous Operation: 100% duty cycle at 1380 kPa (200 PSI)
  • Flow Rate: 425 L/min (15 CFM) free flow
  • Maximum Pressure: 1380 kPa (200 PSI)
  • Motor: Modified 3.7kW (5HP) commercial-grade 24V DC motor
  • Tank Recharge: 38-litre (10-gallon) tank from 827-1034 kPa (120-150 PSI) in 22 seconds
  • Cooling: Dual-fan system (2832 L/min (100 CFM) external + internal motor fan)
  • Cast Iron Cylinder: Enhanced durability and improved oil retention

Operating Features:

  • SSR Control Module for enhanced operation and protection
  • Dash switch and pressure switch for automated control
  • Air filter integration prevents dust and debris contamination
  • Maximum Motor Speed: 1500 RPM for optimal efficiency

Professional Applications

Engineered for 24V heavy-duty systems requiring the most rugged continuous operation, including:

  • Railway and heavy equipment applications
  • Military and defence operations
  • Commercial trucks and industrial vehicles
  • Mining and construction equipment
  • Marine and offshore applications
  • Emergency service and rescue vehicles

Unique Capabilities:

  • Runs 13mm (½”) impact wrench without an air tank
  • Superior performance compared to systems requiring multiple compressors
  • Military-grade construction trusted by government agencies worldwide
  • GSA approved for official procurement requirements

The XDM4000-24 is specifically designed for 24V electrical systems commonly found in railway, military, and heavy equipment applications. Unlike 12V models, the 24V system provides enhanced efficiency and reduced current draw for demanding industrial operations.

HEAVY-DUTY SYSTEM ADVANTAGE

Built for Industrial-Grade Performance

The XDM4000-24’s 24V design delivers superior power efficiency and reliability for the most demanding commercial and industrial applications where continuous operation is absolutely critical.

Why choose 24V continuous-duty:

  • Enhanced power efficiency for heavy-duty applications
  • Reduced current draw compared to equivalent 12V systems
  • Superior cold weather performance for harsh operating conditions
  • Military-grade reliability trusted by defence and emergency services
  • Cast iron construction ensures long-term durability and performance
  • Professional control systems with SSR module and automated operation
